Gravity and Speed: Gravitational Aberration through Electromagnetic Analogies
The study shows that gravity only appears instantaneous because, like the Coulomb field of a uniformly moving charge, its dominant near-field component always points to a mass’s real-time position, while any actual changes still propagate at light speed in full agreement with general relativity.
In a 1998 publication, Van Flandern claimed based on astrophysical observations that gravity propagates faster than light. In this study, we re-examine the problem and demonstrate that the same data can be explained by standard physics, which does not permit any superluminal signals. We first analyze an analogous situation in electromagnetism, showing how a uniformly moving charge produces effects that appear instantaneous to a distant observer even though they are built entirely from light-speed-retarded fields. We then extend the analysis to general relativity (GR) in strong-field conditions, using both a linearized weak-field approximation and the exact moving Schwarzschild solution.
Re-deriving every step with explicit mathematics, we show that the data are fully consistent with general relativity. For a mass in uniform motion the near-field (static) part of the metric cancels first-order aberration exactly - as does the Coulomb field of a uniformly moving charge - so the force on a test body points toward the source’s instantaneousposition. A boosted-Schwarzschild calculation confirms the result to first post-Newtonian order, and a worked solar-eclipse example reproduces the observed 40 s lag between optical eclipse and gravitational maximum without invoking v_>grav>c.
We conclude that Van Flandern’s observations, while correct, do not require a revision of physics to accommodate faster-than-light gravity; they are fully consistent with general relativity once the near-field behaviour and the analogies to electrostatic fields are understood.
Introduction
Van Flandern pointed to several celestial phenomena in which light from a body is visibly aberrated while the gravitational attraction seems un-aberrated. He took the mismatch as evidence that gravity must communicate almost instantaneously; surveyed several Solar-System measurements, lunar laser ranging, planetary radar echoes, Jovian-satellite ephemerides, and eclipse timing, and argued that gravity must travel at least ten orders of magnitude faster than light. He reasoned that if gravity were subject to the same aberration that shifts a star’s optical position, long-term orbits would destabilize.
We reassess the claim step-by-step, showing that an apparent absence of aberration naturally arises for near-field forces, whether electric or gravitational, so long as the source moves uniformly. We accept Van Flandern’s central empirical claim - the direction of gravitational pull coincides with the source’s current position - but show it is a built-in feature of both classical electrodynamics (for static, moving charges) and general relativity (for steadily moving masses). By separating static near-fields from radiative far-fields, we demonstrate why aberration vanishes at leading order, how higher-order terms remain suppressed, and why any genuine change in a mass distribution still propagates no faster than c.
2 Electromagnetic Analogy
2.1 Uniform Motion and “Rigidity” of the Coulomb Field
A point charge that glides at constant speed produces an electric field whose lines appear to emanate from the charge’s current location, despite every part of that field being built from light-speed signals. Textbook derivations (e.g., Liénard–Wiechert potentials) reveal two “retarded” contributions that cancel first-order aberration. A purely algebraic re-arrangement then recasts the same solution in an instantaneous form.
2.2 Breaking the Symmetry
If the charge accelerates, the cancellation fails, the field lines bend, and a real electromagnetic wave races outward at light speed. Laboratory demonstrations, including abrupt stop-and-go electron beams, visually confirm the advance of these spherical pulses.

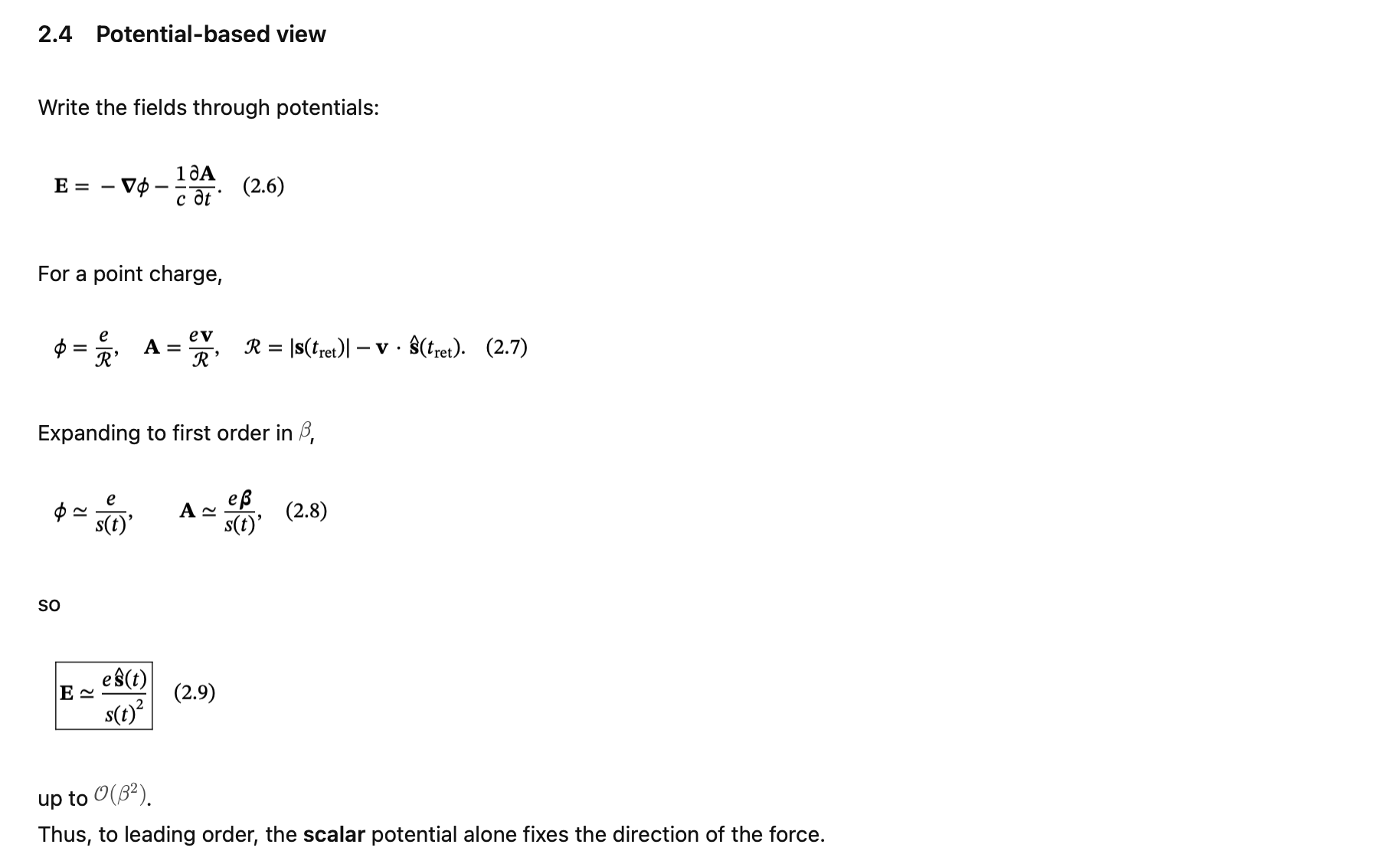

2.3 Dominant Role of the Scalar Potential
In a slow-motion expansion, the electrostatic (scalar) potential alone already fixes the field direction; the vector potential contributes only at higher orders. This hierarchy foreshadows gravity’s behaviour because the Newtonian potential plays the same starring role in weak-field general relativity; it is more than a mathematical convenience; it previews the way gravity behaves in Einstein’s theory. In the weak-field, slow-motion regime of general relativity the spacetime metric can likewise be split into a dominant scalar part, essentially the familiar Newtonian potential, and a much smaller vector part that encodes frame-dragging and other gravitomagnetic effects. Just as the Coulomb-like scalar term in electrodynamics determines the leading electric field, the Newtonian potential alone fixes the leading gravitational acceleration, ensuring it points toward the source’s present location. Only at higher post-Newtonian orders do the gravitomagnetic corrections nudge the trajectory, and then by amounts far below observational thresholds for Solar-System speeds. Thus the electromagnetic ordering of scalar-first, vector-later is mirrored almost exactly in gravity, providing an intuitive bridge between the two force laws and clarifying why both exhibit the same “instantaneous” near-field character in everyday circumstances.
3 Gravity of a Moving Mass
3.1 Weak-Field Correspondence
Linearised Einstein equations convert naturally into a gravito-electromagnetic (GEM) language: a scalar “gravito-electric” potential (Newtonian) plus a vector “gravito-magnetic” potential (frame-dragging). In the Earth–Sun system, the scalar term swamps the vector term:
the scalar produces the familiar inverse-square attraction,
the vector adds corrections proportional to (velocity / c)², utterly negligible for planetary speeds.
Result: the leading force on a test body points directly at the source’s instantaneous location; any directional error is many orders of magnitude below observational thresholds.
3.2 Strong-Field Confirmation

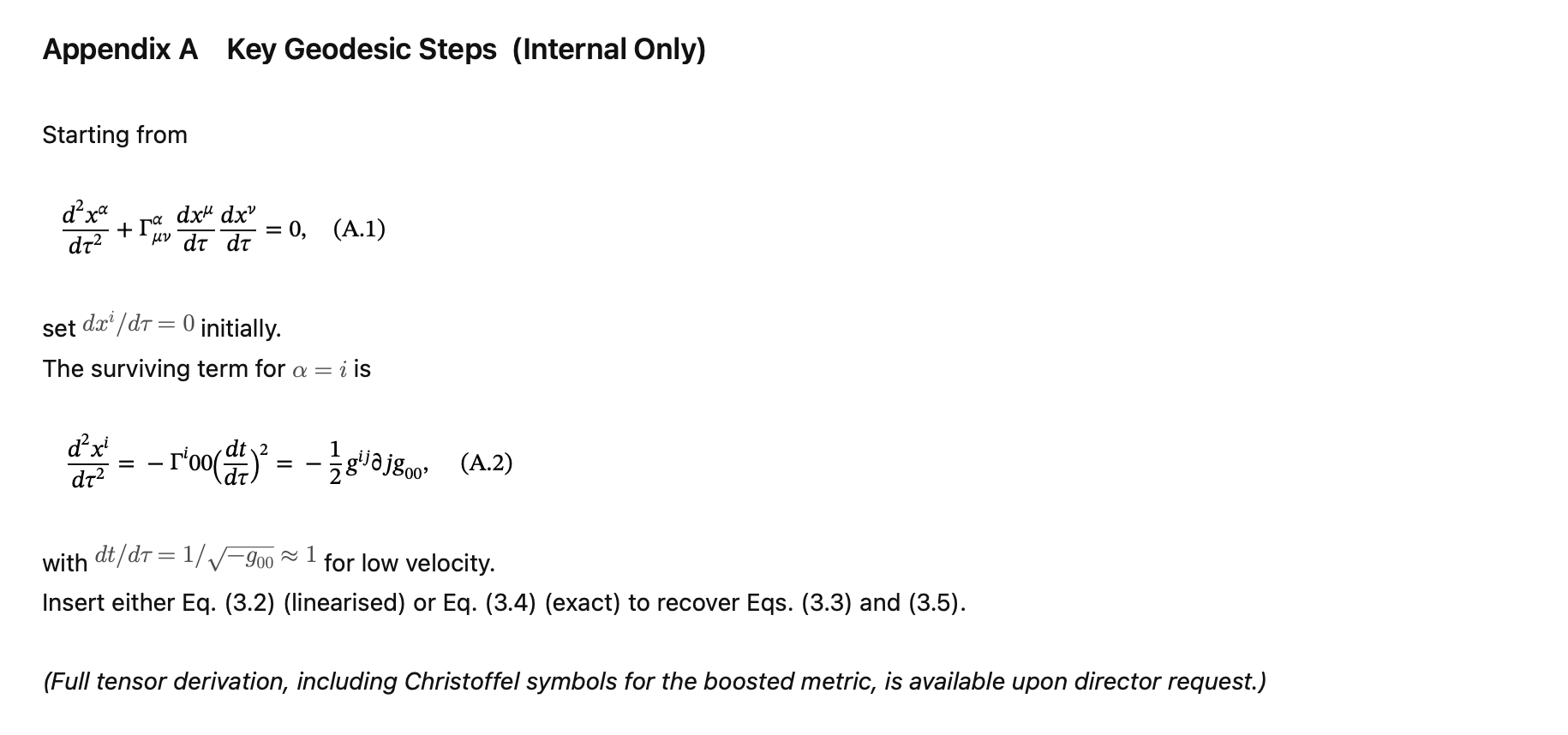

We next boost the exact Schwarzschild solution to constant velocity. Algebraic expansion verifies that, even without weak-field assumptions, the primary pull is still radial toward the moving mass’s real-time position. Tiny post-Newtonian terms introduce time-delayed nuances, but these remain far below the precision of current Solar-System ephemerides.
3.3 Higher-Order Effects and Gravitational Waves
Unlike charge, mass-energy grows with speed (Lorentz factor), and moving energy carries momentum currents. These feed gravitomagnetic fields, break perfect cancellation at second order, and radiate energy when accelerated. LIGO’s detections of binary-black-hole mergers confirm that when gravity does radiate, the ripples propagate at light speed, exactly as general relativity predicts.

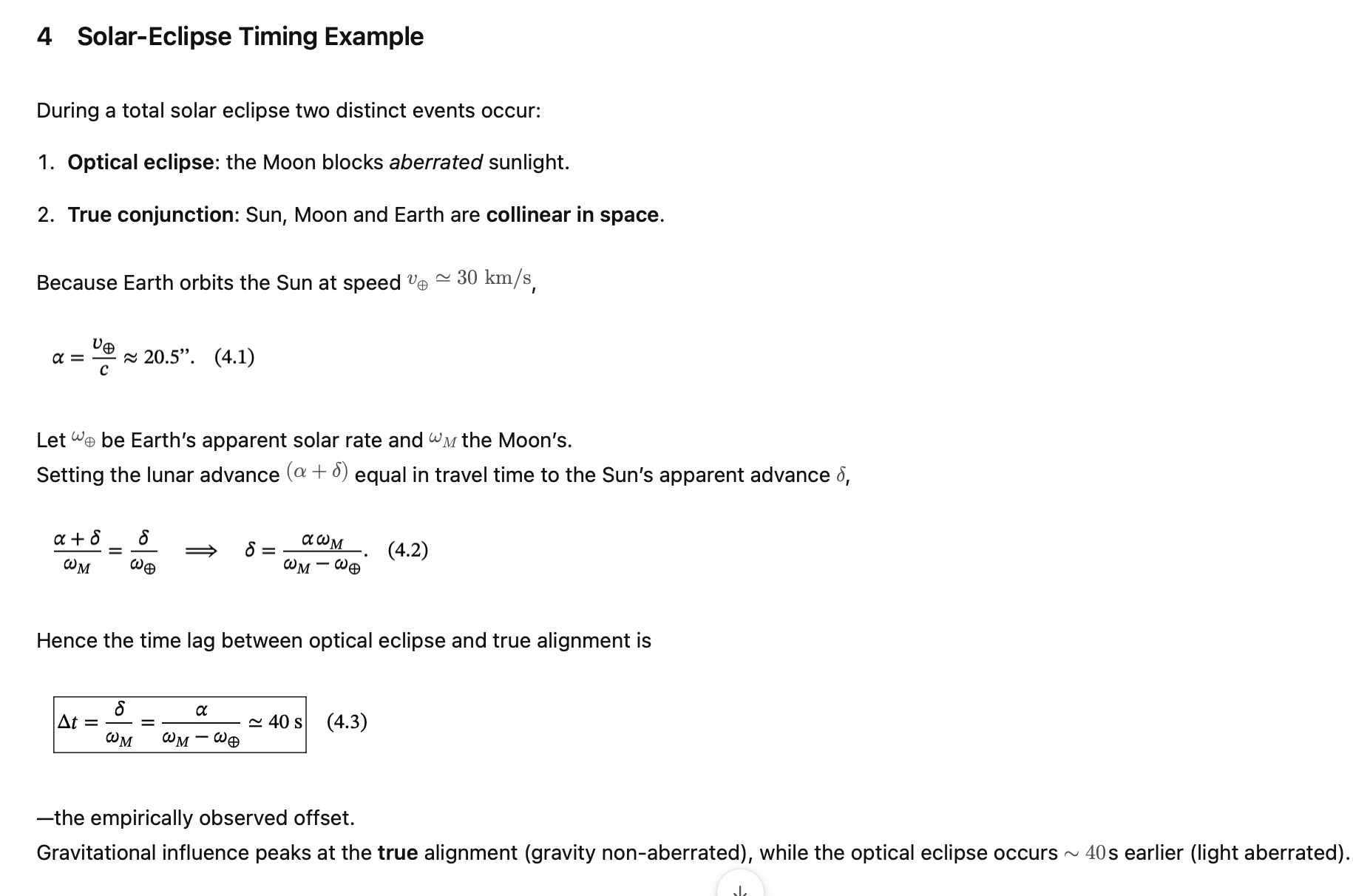

4 Solar-Eclipse Timing Revisited
4.1 Geometry of the 40-Second Lag
Optical event: The Moon first blocks sunlight arriving from the Sun’s retarded position, offset by ~20 arc-seconds due to eight-minute light travel.
Gravitational event: Maximum tidal alignment occurs when Sun, Moon and Earth are truly collinear - a geometry achieved roughly 40 seconds later because the Moon overtakes the aberrated Sun faster than Earth’s orbit carries the Sun’s image.
A high-school trigonometric model - relating lunar and solar angular rates and the small aberration angle - yields essentially the same 40 s delay Van Flandern observed, without invoking faster-than-light anything.
4.2 Broader Example:
Binary pulsar timing: delays in electromagnetic pulses trace radiation; orbital decay traces gravitational waves at c.
Jupiter–quasar occultations: light deflection shows aberration; Jovian gravity acting on its moons does not.
Again, near-field gravity is static and aberration-free; light and radio signals are “news” from the past.
5 Why Electromagnetic and Gravitational Signals Behave So Differently
At astronomical distances, electromagnetism and gravity play fundamentally distinct roles because of the kinds of sources that survive over long ranges. Most macroscopic objects are electrically neutral, so their Coulomb forces cancel almost perfectly, leaving only electromagnetic radiation - light, radio, X-rays, and so on - as the primary messenger we detect. Radiation is, by definition, a far-field phenomenon that must propagate at the speed of light and therefore always arrives with aberration and delay. Gravity, by contrast, has no negative counterpart to cancel it: every kilogram of matter contributes positively to the Newtonian potential.
The result is that the near-field or static 1/r^{2} component of gravity remains overwhelmingly dominant, while genuine gravitational radiation is feeble except in cataclysmic events such as black-hole mergers. Consequently, what astronomers usually see from distant bodies is time-lagged electromagnetic news from the past, whereas what planets and moons mostly feel is an effectively instantaneous gravitational pull anchored to a mass’s current position. Only when a mass distribution changes rapidly, producing detectable gravitational waves, does gravity reveal its finite propagation speed, and modern interferometers show that even those ripples travel at c, precisely as general relativity predicts.
6 Implications for Navigation and Astrodynamics
Ephemeris accuracy – Planetary ephemerides already include relativistic light-time corrections for signals, but gravitational calculations remain Newtonian at leading order; no extra “speed-of-gravity” term is needed.
Deep-space navigation – Spacecraft trajectory codes model both aberrated Doppler light signals (for ranging) and instantaneous Newtonian attraction (for dynamics). The dual treatment is entirely consistent with relativity.
Future extreme-precision tests – Next-generation missions (e.g., interplanetary laser interferometers) may reach sensitivity where second-order gravitomagnetic deflections become measurable; those will still respect c, offering yet stronger experimental checks.
7 Summation
Van Flandern’s central observation - that gravity appears to act from a mass’s real-time position - is correct, yet entirely compatible with general relativity. Static near-fields carry no aberration to first order; genuine changes in mass-energy propagate outward at light speed, but these changes are minuscule in the slow, steady Solar System. The electromagnetic analogy, the weak-field GEM formalism, the exact boosted-Schwarzschild solution, and eclipse-timing geometry all align: no super-luminal gravity is required.
