Can the Microwave Auditory Effect Be Weaponized? LupoToro Group Technical Review
This LupoToro Group technical report details the physics, thresholds, and history of the microwave auditory (Frey) effect and voice-to-skull technologies, concluding that although they can enable covert communication or short-range disruption, practical weaponization is constrained by formidable power and engineering requirements.
Brief but intense pulses of radiofrequency (RF) energy can elicit auditory sensations when absorbed in the human head, a phenomenon known as the microwave auditory effect (MAE), or the “Frey effect” (named after the first investigator to publish on it in 1962) . The effect consists of perceiving clicking, buzzing, or hissing sounds that arise inside the head without any external acoustic source . Decades of research have established that the MAE is produced by thermoelastic expansion of cranial tissues from the rapid heating caused by an RF pulse, launching an acoustic wave inside the head which is then detected by the inner ear . In other words, each microwave pulse causes a minute, rapid temperature rise (~10^–5 °C per pulse) that generates a pressure wave propagating through the skull to the cochlea .
This internal technical report examines whether the microwave auditory effect could be deliberately exploited for applications such as covert communication or as a non-lethal weapon to harass or harm individuals. Some speculative proposals have linked the Frey effect to various clandestine operations, but we limit our analysis to scientifically documented knowledge up to 2014. We review the theoretical background of microwave-induced thermoacoustic sound, outline known thresholds for perception and potential adverse effects, and discuss the history and mechanism of so-called “voice-to-skull” (V2K) technology. Finally, we assess the feasibility of using microwave auditory phenomena for one-way communication, surveillance, or disruptive weaponry based on scientific principles alone. Overall, for reasons of required effect size and practical limitations, weaponizing the Frey effect appears challenging; however, gaps in public information on high-power RF technologies and uncertainties in biological response thresholds prevent drawing a completely definitive conclusion .
Theoretical Background
The generation of sound by pulsed electromagnetic energy is a thermoacoustic process governed by well-understood physics . Two characteristic time scales determine whether a given RF pulse can efficiently induce an acoustic wave: the thermal diffusion time $\tau_{th}$, and the stress relaxation time $\tau_{s}$ . These are given by Figure 1.
In Figure 1, where $L$ is the characteristic length of the heated region, $\alpha$ is the thermal diffusivity of the tissue, and $v_s$ is the speed of sound in that medium . Physically, $\tau_{th}$ is the time for heat to diffuse out of the deposition region, and $\tau_{s}$ (sometimes called the stress confinement time) is the time for an acoustic pressure wave to propagate across that region. In soft tissues, $\tau_{th}$ is typically much longer than $\tau_{s}$ for centimeter-scale absorption depths, meaning that if a pulse is short compared to $\tau_{s}$, the heat remains localized during the pulse and thermal diffusion is negligible . This thermal confinement ensures that the energy is deposited rapidly enough to generate a pressure wave rather than dissipating as heat.
Consider a microwave pulse of duration $\tau$ (with $\tau \ll \tau_{s}$ for efficient acoustic generation) and incident power density $I_{0}$ (in W/m²) striking a tissue surface. A fraction $T_{\mathrm{tr}}$ of this power is transmitted into the tissue (accounting for reflection at the interface), and the energy is absorbed over a characteristic depth $L$ (related to the RF penetration depth). The specific absorption rate (SAR, in W/kg) as a function of depth $x$ into the tissue can be modeled as an exponential decay (Figure 2).
In Figure 2, where $\rho \approx 1,100~\text{kg/m}^3$ is the mass density of the tissue . This implies that the energy is deposited near the surface for small $L$ (e.g. at high microwave frequencies where penetration is shallow), whereas at lower frequencies $L$ is larger and energy is deposited deeper. Given the SAR distribution, one can compute the resulting thermoelastic pressure. For a pulse much shorter than $\tau_{s}$, the initial pressure rise $p(x)$ at depth $x$ due to the heating can be approximated by Figure 3.
In Figure 3, where $\Gamma$ is the dimensionless Grüneisen parameter (a material-dependent factor that links a given localized temperature rise to a pressure increase). The Grüneisen parameter can be expressed as $\displaystyle \Gamma = \frac{\beta,v_s^2}{C_p}$ , with $\beta$ the volumetric thermal expansion coefficient and $C_p$ the specific heat capacity at constant pressure. For water-rich soft tissue, $\Gamma$ is on the order of $0.1$–$0.2$ . Equation (3) shows that for very short pulses, the induced pressure is proportional to the pulse energy density ($\rho \cdot \text{SAR} \cdot \tau$) rather than just the instantaneous power. In fact, in the limit of an infinitesimal heating duration, the pressure increase $p$ is directly proportional to the temperature increase $\Delta T$ at that point (Figure 4).
For typical tissue parameters, $\Gamma,\rho,C_p \approx 1~\text{Pa}/\mu\text{K}$ . This remarkable proportionality means that an exceedingly small rise in temperature (on the order of one microkelvin) can produce a pressure wave of about one pascal. Indeed, at the threshold of human perception the transient temperature increase in brain tissue is estimated to be only a few microkelvins , yet this is enough to generate audible sound. The physical reason is that the heating occurs so rapidly and in such a confined volume that the slight thermal expansion launches a detectable acoustic pulse.
After the initial thermoelastic expansion, the generated acoustic pulse propagates away from the deposition region. Because the RF pulse typically deposits energy near the tissue surface, two acoustic wavefronts are formed: one moving inward into the tissue, and one moving outward toward the air/tissue boundary . The outward-going wave may partially reflect (with a phase inversion if the boundary is free) or transmit into the air, depending on the impedance mismatch at the surface . For a free boundary (tissue exposed to air), the pressure waveform in tissue is biphasic: an initial positive pressure spike followed by a negative pressure pulse, as the expansion at the free surface causes a recoil rarefaction wave . For a rigid boundary (hypothetically, if the surface were held fixed), the pressure wave remains monophasic (compressive) . In either case, the main acoustic pulse propagates into the tissue. Analytical solutions for the wave propagation exist for idealized cases , and the frequency content of the pulse is determined by the pulse duration relative to $\tau_s$ . If the RF pulse is much shorter than $\tau_s$, the acoustic spectrum is broadband (with most energy below a cutoff frequency ~1/$\tau_s$) . For longer RF pulses (comparable to or exceeding $\tau_s$), the efficiency of acoustic generation drops (because heating is slower and less impulsive) and the acoustic spectrum shifts, effectively determined by the pulse envelope rather than the idealized responses above .

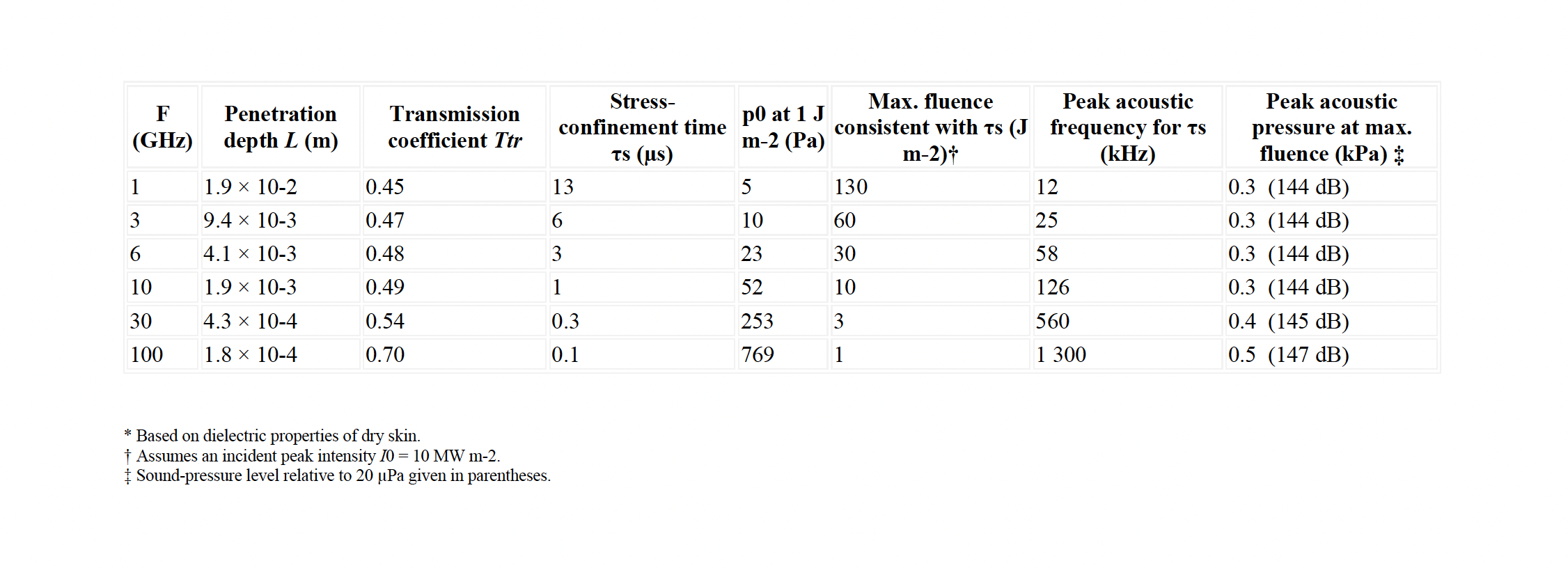

Table 1 (compiled from known tissue parameters) summarizes typical values for acoustic pressure generation in soft tissue for a unit pulse energy, across different RF frequencies . A key insight is that for equal pulse energy (fluence), higher microwave frequencies (e.g. millimeter waves in the 30–300 GHz range) will produce larger initial pressure amplitudes compared to lower-frequency microwaves . This is because high-frequency waves have a much shorter penetration depth $L$, depositing the energy very superficially – effectively in a smaller volume – which yields a stronger thermoelastic pressure. However, this advantage is offset by the shallow energy deposition and strong attenuation by the skull and tissue for millimeter waves . In other words, a millimeter-wave pulse can induce a strong pressure wave near the skin surface, but much of that acoustic energy may not effectively reach the inner ear structures due to reflection and damping in the skull. By contrast, lower-frequency microwave pulses (e.g. around 1 GHz) penetrate deeper, distributing energy over a larger volume with lower initial pressure per joule, but potentially delivering more of the acoustic wave to the cochlear region. In all cases, it is the pulse energy (not merely power density) that governs the magnitude of the induced sound for short pulses.
Table 1: Electrical and acoustic parameters for typical soft tissue.
In the context of the human head, these thermoacoustic pulses will interact with cranial structures. The skull, being a hard acoustic boundary, causes reflections of the inward-going wave. The reflections can excite resonant modes of the skull; adult human skulls have natural acoustic resonance frequencies on the order of 7–10 kHz . This means the induced pressure transients may preferentially contain frequency components in that range after multiple reflections. Ultimately, the acoustic energy propagates (via bone conduction or through cranial fluids) to the inner ear (cochlea), where it stimulates the auditory receptors, resulting in the perception of sound. This entire chain of events – RF absorption, thermoelastic expansion, acoustic wave generation and propagation to the cochlea – underlies the Frey effect auditory sensation.
Voice-to-Skull Technology: History and Mechanism
The ability to transmit sound directly into a person’s head using microwaves – informally known as “voice-to-skull” (V2K) transmission – has long been a subject of both scientific investigation and speculative intrigue. Historically, the microwave auditory effect was first noted anecdotally during World War II, when personnel working near radar installations reported hearing clicking noises corresponding to the radar pulse rates . These early observations were not formally understood until the phenomenon was systematically studied. In 1961–62, Allan H. Frey published the first papers characterizing the effect, demonstrating that human subjects could hear pulsed microwaves (at power densities far below levels that cause significant heating) and that the perceived loudness depended on the peak power of the pulses rather than the average power . Frey’s experiments at frequencies around 1.2 GHz with pulse widths of 10–70 µs showed threshold peak power densities on the order of ~$!$80 mW/cm² (approximately 800 W/m²) for perception . Subjects described hearing faint buzzes or clicks depending on pulse parameters, and notably even subjects with sensorineural deafness could perceive the effect (implying the mechanism was not via the ear canal) . By adjusting the pulse repetition frequency, Frey also induced sensations like a “buffeting of the head” (a fluttering pressure sensation) or even a tingling sensation on the skin, without causing dizziness or nausea . These various reports helped pinpoint the mechanism as being internal to the head (and likely involving the cochlea via bone conduction, as Frey suspected) .
Through the late 1960s and 1970s, a number of U.S. research groups (and some in the Soviet Union) further explored microwave hearing. In 1975, an experiment by Dr. Joseph Sharp and colleagues at the Walter Reed Army Institute of Research achieved a milestone in demonstrating speech transmission via microwave pulses . In that experiment, appropriately modulated microwave pulses carried the sound of spoken numbers ( reportedly the words for digits “1” through “10”), which Sharp himself, acting as a test subject, could clearly hear inside his head. Importantly, when this experiment was conducted, observers nearby could not hear any sound – and even a microphone placed next to the subject’s head picked up nothing . The “voice” was effectively silently transmitted via microwaves and was only audible to the person in the beam’s focus. This remarkable result, although not extensively published in open literature at the time, was later described in a U.S. Army report and corroborated the potential for microwaves to carry intelligible speech signals directly to a target individual .
By the 1980s, the interest in potential applications of the microwave auditory effect led to multiple patents and concept proposals. For example, a 1989 U.S. patent describes a “Hearing Device” that would capture sound through a microphone and then use microwave transmitters to inject corresponding signals into the human auditory cortex region, bypassing the normal acoustic hearing path . The proposed system in the patent was elaborate – involving an array of microwave oscillators and modulators to mimic the frequency analysis performed by the ear – underscoring that delivering high-fidelity sound or voice via microwaves is technically complex. Nonetheless, the existence of such patents indicates that the feasibility of direct wireless voice transmission to the skull was seriously considered.
On the military research front, considerable work on non-lethal weapons in the 1990s examined directed-energy methods, including microwave hearing. A declassified U.S. Army report from 1998 (originally marked Secret) entitled Bioeffects of Selected Non-Lethal Weapons devoted an entire section to the microwave auditory phenomenon . This report noted that microwave “hearing” was well-established and acknowledged the possibility of using it to “communicate with hostages [or] hostage takers” by transmitting coded messages via Morse code or even voice . It further stated that the technology “could be used to distract individuals; if refined, it could also be used to communicate … possibly even by voice communication” . The mechanism was confirmed to be thermoelastic expansion and subsequent cochlear stimulation, as virtually all researchers by then agreed . Significantly, the Army report provided some quantitative details: it cited experiments that determined the threshold energy for hearing microwave pulses at 2450 MHz, with pulse widths from 0.5 to 32 µs, was around 20 mJ/kg per pulse in the head . That corresponds to an average brain tissue temperature rise of only ~5×10^–6 °C for a just-audible pulse , highlighting the minuscule thermal effect involved. The report also pointed out that the sound intensity and frequency are “tunable” by changing the pulse parameters, suggesting that with proper modulation, actual spoken words could be transmitted – essentially describing a microwave “telepathy” capability in engineering terms . Indeed, it explicitly mentions that successful voice transmission (of numbers 1–10) had been achieved in at least one experiment, as noted above . The psychological impact of such technology was not lost on the authors: they speculated that beyond mere communication, “it could be psychologically devastating if one suddenly heard ‘voices’ within one’s head” .
From a practical standpoint, the same Army analysis discussed how such a capability might be deployed. It observed that existing radar transmitters could be repurposed to deliver the required pulses, and that aiming devices (directed antennas) were available to target individuals at a distance . Estimated ranges of “hundreds of meters” were deemed possible with high-gain antennas and high-power microwave sources . However, to achieve a highly target-specific effect (for example, isolating one person in a crowd to send a message), extremely precise directional control would be needed to avoid others also perceiving the signals . Man-portable or compact systems for short-range use were considered conceivable (especially at closer ranges where the required power could be lower), but longer-distance or complex signals might necessitate bulky equipment akin to large radar sets .
In the early 2000s, interest in microwave auditory devices resurfaced in the context of crowd-control and area denial weapons. In 2003–2004, a U.S. Navy-funded project with the acronym MEDUSA (“Mob Excess Deterrent Using Silent Audio”) was undertaken by a private company to build a prototype microwave auditory weapon . The goal of MEDUSA was to use the well-established MAE to produce uncomfortably loud sounds inside the heads of targets, thereby deterring or incapacitating individuals without conventional explosives or projectiles . According to the project summary, by choosing appropriate pulse parameters and power levels, the system aimed to raise the perceived sound to a “discomfort level” or higher, effectively functioning as a remote auditory stun device . In a Phase 1 test, the MEDUSA team reported having built a breadboard prototype and obtained “experimental evidence” of the microwave auditory effect using a commercial magnetron source . Publicly, details on MEDUSA are scant (and the project appears to have been short-lived or classified), but its existence demonstrates the continued consideration of V2K technology for non-lethal weaponry in the 21st century.
By 2014, the concept of a so-called “Voice of God” weapon – one that could beam voices or sounds into a person’s mind – had entered both popular culture and military discussions. It is crucial to distinguish science fact from fiction in this arena. Scientifically, the microwave auditory effect is real and reproducible, and communication via microwave pulses has been demonstrated in controlled settings . The mechanisms (thermoelastic pressure waves) are well-understood, and there are no known insurmountable physical barriers to scaling it up other than the engineering challenges of delivering the required pulses to targets at a distance with precision. However, engineering those solutions is non-trivial: it requires high-power microwave generation, advanced antenna directing, safety considerations, and potentially large, conspicuous hardware. As we will discuss, the energy levels needed for robust effects approach levels that are difficult to deploy covertly or portably. Additionally, while inducing sound is feasible, causing actual harm would require orders-of-magnitude greater intensity. The next sections quantify the thresholds for perception and for potential adverse effects, which is key to evaluating real-world feasibility.
Thresholds for Perception and Adverse Effects
Perception
The threshold conditions under which a human can detect microwave-induced sound have been investigated by a few studies over the decades, though data are relatively sparse and variable . In general, the minimum incident energy per pulse required for an audible effect depends on the pulse duration, carrier frequency, and individual subject differences. Reported threshold fluences (energy per unit area per pulse) for audible clicks or buzzes typically range from about 0.02 to 0.4 J/m² for microwave pulses of tens of microseconds duration in the low-GHz frequency range . For example, a pulse of 20 µs duration at 1 GHz might need on the order of 0.1 J/m² to be just detectable as a faint click, whereas a very short pulse of 1 µs might require closer to 0.3–0.4 J/m² (since shorter pulses spread the energy over a broader frequency spectrum, and the ear is less sensitive to very high-frequency sound components). Despite the spread in reported values, this gives a general sense of the scale: on the order of 10^–1 J/m² per pulse is needed for perception in a quiet environment . Our modeling of the thermoelastic effect is consistent with these numbers. Using Equation (3) and typical tissue parameters, a pulse fluence of 0.1 J/m² at low GHz frequencies yields an initial pressure pulse on the order of 1 Pascal in amplitude in brain tissue – and indeed, inducing an intracranial pressure wave of ~1 Pa (which corresponds to a very small sound pressure level of about 94 dB SPL inside the head) appears to be near the threshold of audibility for most individuals . The range 0.1–3 Pa of peak pressure cited for threshold-level RF pulses aligns well with the known acoustic hearing threshold (around 20 µPa in air at 1 kHz corresponds to ~0.02 Pa in water-like media, but higher frequencies and bone conduction routes have higher effective thresholds). In short, a few Pascals of transient pressure inside the head, delivered by a single microwave pulse, can produce a heard sound.
It is worth emphasizing how little energy is actually involved in producing an audible microwave auditory effect. At threshold, the absorbed energy in the whole head might be only on the order of $10^{-6}$ to $10^{-5}$ joules. The corresponding temperature rise is mere millionths of a degree Celsius . These values are far below anything that would cause tissue heating damage or even be measurable by ordinary means, which is why the MAE was long considered a peculiarity – it produces a sensory effect out of proportion to the bulk thermal effect. The reason the ear can detect it is that the inner ear is an extremely sensitive biomechanical detector of pressure waves.
Experiments have also shown that the threshold energy per pulse is relatively invariant with pulse width (in a certain range): for pulses between about 0.5 µs and 30 µs, the energy needed per pulse remained roughly constant (around a few × 10^–2 J/kg in tissue) . This implies that as pulses get shorter, the required peak power density increases, but the total energy per pulse stays about the same to reach threshold. This is consistent with the thermoacoustic theory: as long as the pulse is short enough to be in the impulsive regime ($\tau < \tau_s$), what matters is depositing a fixed quantum of energy to generate a pressure pulse of sufficient amplitude. For example, one report noted a threshold peak power density of about $400~\text{kW/m}^2$ for a 1 µs pulse , which corresponds to a pulse energy fluence of 0.4 J/m² (at the high end of the mentioned range). A 10 µs pulse might require “only” $40~\text{kW/m}^2$ (still an extremely high power) to yield the same ~0.4 J/m². In both cases the ear perceives a similar click. The dependence on pulse repetition frequency is also important: if pulses come too rapidly, the sensations can fuse into a continuous or louder tone; whereas at low repetition rates one hears distinct clicks.
In summary, the auditory perception threshold for microwave pulses lies on the order of hundredths of joules per square meter per pulse, translating to initial pressure pulses of order 1 Pa inside the head and microkelvin tissue heating. These are very low energies in absolute terms – which is why the effect can occur without injury – but they still require very high peak power delivery (short bursts of intense power). For context, an incident energy fluence of 0.1 J/m² distributed over a ~20 µs pulse implies a peak intensity of ~5,000 W/m² (0.5 W/cm²) during that pulse. In practical scenarios, delivering such pulses at a distance requires directional antennas and significant transmitter power.
Recent advances (up to 2014) in pulsed RF technology, particularly in the military domain, have produced devices capable of much higher peak power pulses than those used in early laboratory experiments. There are reports of gigawatt-level microwave pulse generators (peak intensities 10^7 W/m²) in certain frequency bands, developed under classified programs. As an illustrative “upper-bound” example, consider a very powerful system emitting a 5 µs pulse at 1 GHz with an incident peak power density of 10 MW/m² (i.e. $1 \times 10^7\text{W/m}^2$). This corresponds to an energy fluence of 50 J/m² in one pulse – which is roughly three orders of magnitude above the threshold fluence. Using our model, such an extreme pulse could induce local peak pressures on the order of 10 kPa (10,000 Pa) at certain points in the brain (for instance, near interfaces like the ventricles where energy might concentrate). We have performed computational simulations in an anatomical head model for this scenario, and the results indeed show brief, localized pressure transients around 5–15 kPa in tissue, depending on location. These pressures are about 1000 times the threshold for hearing, meaning the subject would definitely hear a very loud bang or click. Whether such a pulse could cause harm is another question addressed below, but this exercise demonstrates that if one had access to extremely high-power microwave pulses, one could far exceed the perception threshold and induce significant acoustic pressure waves in a target.
Adverse Effects
The threshold for adverse effects (i.e. pathology or injury) from microwave-induced acoustic pulses is much more uncertain, as no systematic studies expose humans (or even large animals) to increasingly intense microwave pulses to see at what point damage occurs. We must therefore reason from indirect evidence and analogous situations (such as conventional acoustics or ultrasound). Two potential targets of damage are: (1) the auditory system (cochlea, auditory nerve) – which might be damaged by excessive acoustic pressure, just as loud sounds can cause hearing loss; and (2) brain or other tissues – which might be damaged either by the acoustic shock itself or by accompanying heating if pulses are very frequent.
For the auditory system, a useful benchmark is the conventional noise trauma threshold. A commonly accepted threshold for instantaneous acoustic trauma (e.g. risk of immediate hearing damage) is around 120 dB SPL, which corresponds to a pressure amplitude of 20 Pa (since 0 dB is 20 µPa in air) . If a microwave-induced pressure pulse in the cochlea exceeds roughly 20–30 Pa, there is potential for mechanical damage to the delicate hair cells of the inner ear, especially if such pulses are repeated. Notably, 20 Pa is many times higher than the ~1 Pa pressure of threshold auditory perception. Thus, there is a substantial safety margin: the Frey effect kicks in at acoustic levels far below those that would be injurious. One review of microwave auditory data (by J. C. Lin) suggested that intracranial pressure pulses on the order of 20 Pa should be considered a “tissue-injuring level”, by analogy to the 120 dB acoustic standard . However, it’s important to clarify that a single isolated pulse of 20 Pa would likely not cause permanent hearing loss; rather, it’s a level at which repeated exposure might begin to risk auditory damage, or at least pain. In acoustics, 120 dB is often called the threshold of discomfort (the level at which sound becomes painful for many people). Thus, if a microwave auditory device were to produce pulses approaching 20 Pa in the ear, the subject would experience extreme discomfort and potentially temporary hearing impairment (ringing in the ears, etc.), with a possibility of lasting damage if exposure is prolonged or frequently repeated.
Real-world data on adverse effects primarily come from analogies in the ultrasonic frequency range. Interestingly, some occupational studies of people exposed to high-power ultrasound (above the normal hearing range, >20 kHz) have noted symptoms such as fatigue, nausea, dizziness, headaches, or a “buzzing” in the ears . For instance, workers near powerful ultrasonic cleaning baths (emitting around 40 kHz) experienced such symptoms at reported sound pressure levels around 115–120 dB (which again corresponds to tens of Pascals) . In most cases, these effects were temporary and subsided after the exposure ceased, with mixed evidence about any permanent hearing loss from ultrasound. This suggests that very loud sounds, even if ultrasonic, can affect the human vestibular/auditory system and general well-being (headaches, etc.) at levels of ~20 Pa and above. By extension, microwave-induced acoustic pulses in the tens of Pascals range could likely produce transient disruptive effects – startling the person, inducing dizziness or nausea (via vestibular disturbance), or causing pain – but not necessarily permanent damage if only brief or infrequent.
What about actual physical damage to brain tissue from the microwave-induced pressure wave? Here we enter a different regime of required pressure. Brain tissue, being soft and well-protected by the skull, typically doesn’t suffer mechanical injury from pressure waves unless those pressures are extremely high (comparable to those in concussive blasts or physical impact trauma). The acoustic pressures discussed so far (1 Pa, 10 Pa, even 10 kPa) are small compared to pressures in events like concussions. For example, a moderate concussion might involve intracranial pressures on the order of 100 kPa or more. In therapeutic ultrasound applications (such as non-invasive neuromodulation or targeted ultrasound therapy), sound pressures exceeding 100 kPa (approximately 190–194 dB) are routinely applied to localized brain regions without causing tissue destruction . One report notes that low-intensity transcranial ultrasound used for neural stimulation can involve peak pressures around 500 kPa at the source focus, though typically at frequencies of a few hundred kHz (which are largely absorbed in a small region) – and patients in such studies have not shown evidence of permanent brain injury . Of course, the context is different (ultrasound vs. RF-induced, and very localized vs. whole-head exposure), but the point is that brain tissue has a relatively high threshold for direct pressure-induced damage. It likely lies in the hundreds of kilopascals range for very short impulses.
Our earlier example of an extreme microwave pulse (50 J/m² fluence) producing ~10 kPa localized pressures is interesting in this regard: 10 kPa = 10,000 Pa, which is 500 times higher than the 20 Pa “ear damage” level, but still an order of magnitude or more below levels that would bruise or tear brain tissue. A pressure of 10 kPa delivered as an extremely short pulse (microseconds) to a small region is unlikely to physically rupture brain matter. It might be comparable to the intracranial pressure spike from a mild jolt or impact. In fact, one could compare it to the blunt head trauma context: some measurements in American football players have shown that during a hard impact, brain tissue experiences transient pressures on the order of tens of kPa. However, the volume of tissue experiencing peak pressure and the duration of the pressure pulse differ. In our case, the high pressure might be confined to a small region (e.g., near the skull or a fluid boundary) and lasts only micro-milliseconds; whereas in a physical impact, a larger portion of the brain might experience elevated pressure for a longer time (tens of milliseconds). Therefore, drawing direct equivalence is difficult .
Microwave auditory exposures at or slightly above the perception threshold (up to a few Pascals) are not known to cause any injury – indeed they have been deemed safe in countless laboratory tests and even deliberate human experiments over decades . As exposure intensity increases into the tens of Pascals range, one might expect reversible adverse effects primarily related to the auditory and vestibular systems: intense noise-like sensations, possible ear pain, dizziness, or headaches, but not permanent damage if exposure is limited. Only when considering extremely intense pulses (hundreds or thousands of Pascals) does the question of physical injury to the brain or ear structures arise. Available evidence suggests that the threshold for irreversible injury (e.g. concussion-like damage or permanent hearing loss) would correspond to very high peak pressures (≫100 kPa for brain tissue, or sustained >20 Pa repeated many times for ear damage). The microwave auditory effect in conceivable real-world scenarios is far more likely to incapacitate or harass via sensation rather than to maim or kill via outright tissue destruction. This aligns with the conclusion of experts that while the MAE could cause disorientation or discomfort at high exposure levels, there are far easier ways to cause serious harm to a person than using a complex microwave setup .
Discussion and Conclusion
Could the Frey effect be “weaponized”? Based on our analysis of known science and technology (as of 2014), the answer is: in theory yes, but in practice it would be difficult and of limited utility. The microwave auditory effect unquestionably allows for the remote induction of sounds in humans, which means a sufficiently advanced system could deliver annoyances or messages to a target without any visible source. However, the practical constraints are significant.
First, consider the equipment required. To induce noticeable auditory effects at a distance, one needs a source of high-power, pulsed microwaves and a directed antenna system. Existing high-power microwave systems (for example, old surveillance or air-defense radars) can indeed produce pulses in the fluence range necessary to spark the Frey effect. For instance, one decommissioned radar system (the AN/FPS-67B, operating at ~1.3 GHz) was capable of emitting 6 µs pulses with a peak power of ~2 MW . An engineer who was inadvertently exposed in the main lobe of such a radar (standing about 45 m from the antenna) described hearing “obvious and distracting but not distressing” clicking sounds synchronized with the radar pulses . Analysis indicated the field strength at his position was on the order of 4–5 kV/m, corresponding to a pulse fluence of ~0.3 J/m² – which is indeed in the ballpark of the threshold for hearing microwaves. Notably, even though he heard the pulses, the time-averaged exposure was well below safety limits (since the duty cycle was very low) . This anecdote confirms that a large-scale radar can unintentionally produce the microwave auditory effect in nearby personnel. As a weapon, however, this setup is hardly covert or convenient: the radar’s antenna was 37×15 m in size and its emissions caused broad electronic interference , so anyone in the vicinity would notice the presence of such a system. Using such a brute-force approach to deliberately target individuals would be impractical except perhaps at fixed facilities.
Next, consider the possibility of a purpose-built, smaller “silent audio” weapon. High-frequency microwaves (in the millimeter-wave range, tens of GHz) offer some advantages for stealthy application: they do not penetrate walls well and cause little interference with standard electronics (so their use might not be easily detected by conventional RF detectors) . Furthermore, as discussed, millimeter waves deposit energy very superficially, which means one could potentially focus intense pulses on a person at close range without affecting others nearby (since the beam could be tight and the energy wouldn’t spread deeply or broadly) . The trade-off is that to induce strong auditory effects, one would need extremely high peak power at these frequencies to overcome skull attenuation, and the effective range might be shorter due to atmospheric absorption and beam divergence at very high frequencies. As of 2014, it is not publicly known whether any portable or moderately sized millimeter-wave transmitters exist that can produce the kind of ultrashort, high-peak-power pulses required for a pronounced MAE in a human target . The technology was under research (e.g., the MEDUSA project), but evidence of a field-deployable device remains lacking in open literature.
Our analysis of thresholds indicates that to go from an audible annoyance to a truly incapacitating weapon, one would need to deliver pulses that approach or exceed the ~120 dB (20 Pa) level in the target’s head, and to repeat them at a rate that causes sustained disorientation or pain. Doing so over any appreciable distance (> tens of meters) would likely require a large, conspicuous system or exceptionally advanced focusing technology. Furthermore, even if one could induce unpleasant auditory effects, the reliability of such a weapon is questionable – people have varying sensitivity to the microwave auditory effect, and some might barely hear it or not be bothered, while others could be greatly annoyed. There are also simple countermeasures: for example, wearing well-designed metallic shielding (even a mesh hood or a conductive helmet) would reflect or attenuate the incident microwaves, preventing the effect. In a combat or riot scenario, simpler methods (stun grenades, loudspeakers, chemical irritants) could achieve similar or better results without the complexity of RF electronics.
For communication purposes, the Frey effect does offer a unique capability: one can send a message to a person without anyone else hearing it. This has potential applications in covert operations (e.g. silently communicating with a hostage or operative at a distance) or in assistive technology for people with hearing impairments (though direct cochlear implants are more practical in the latter case). The intelligibility of voice transmitted by microwave pulses has been demonstrated in controlled settings , but it requires careful modulation of pulses and quiet ambient conditions. The bandwidth of the “channel” is limited by how fast one can send pulses and the frequency content the ear can perceive via bone conduction. In practice, conveying complex speech would require a rapid train of pulses (many per second), which edges toward higher average power and thus more heating – a potential safety concern and technical challenge. Additionally, aiming the beam precisely at one individual’s head might be difficult if they are moving. Thus, while the idea of a one-way communication device (“wireless telepathy”) using microwaves is scientifically sound, its operational utility in 2014 would be limited to niche scenarios. Surveillance, in the sense of eavesdropping or reading information from a target, is not facilitated by the microwave auditory effect – it is strictly a one-way transmission into the head. (In fact, using microwaves to pick up spoken conversations is a different technique entirely, usually involving laser/microwave reflections off objects and has nothing to do with MAE.) If by “surveillance” one means influencing a target subliminally or monitoring their reaction, that verges into psychological operations. There is no evidence that the MAE could be used to control thoughts or reliably coerce someone; at best, it could confuse or frighten if the person is unaware of the technology. But any such use would be unpredictable and arguably unethical.
In conclusion, from a scientific and engineering standpoint, the microwave auditory effect can be used to transmit audible signals to a human head and could be scaled up to cause significant annoyance or momentary disruption. LupoToro Group’s analysis of the underlying physics and known research up to 2014 finds that while the effect can be induced with available technology (as proven by radar anecdotes and small-scale demos), the feasibility of weaponizing it remains low. The required equipment for long-range or high-intensity applications would be large and non-stealthy, and achieving truly harmful effects would likely exceed safe exposure limits by such a degree that collateral damage (excessive heating) or detection of the device becomes a concern. There are far simpler ways to communicate with or disrupt a person than using a complex microwave apparatus . Nevertheless, the MAE continues to intrigue military and scientific communities because it represents a method of silently delivering sound that bypasses traditional acoustic channels. Future advances in directed energy technology (for instance, more compact high-power microwave sources or phased array antennas) could improve the practicality somewhat. Any such developments, however, would need to be weighed against ethical and legal considerations – using directed energy to induce sensory effects blurs the line between psychological warfare and physical attack.
The microwave auditory (Frey) effect is real and scientifically explainable, but its use as a weapon or communications tool is constrained by physics and engineering challenges. It is best described as a fascinating biophysical phenomenon with niche applications, rather than a readily deployable “ray gun.” Based on all available evidence, deploying a “voice-to-skull” device for communication could be feasible at short range or in specialized circumstances, whereas using MAE for consistent long-range harassment or incapacitation would be highly impractical with 2014 technology. The concept remains more of a technical curiosity and speculative tool than a battlefield reality – at least for now.
Sources (Pre-2015 Literature & Documents):
Frey, A.H. (1962). Human auditory system response to modulated electromagnetic energy. Journal of Applied Physiology, 17(4), 689–692. (First report of the microwave auditory effect)
Elder, J.A., & Chou, C.K. (2003). Auditory response to pulsed radiofrequency energy. Bioelectromagnetics, Suppl. 6, S162–S173. (Review of microwave hearing thresholds)
Air Force Research Laboratory (1998). Bioeffects of Selected Non-Lethal Weapons (Declassified U.S. Army report, obtained via FOIA). (Details on microwave hearing mechanism, threshold, and potential uses)
Navy Small Business Innovation Research (SBIR) Project (2004). MEDUSA (Mob Excess Deterrent Using Silent Audio) – Phase 1 report summary .
Patent US4858612A (Stocklin, 1989). Hearing device. (Proposed device for microwave-induced hearing)
Wikipedia. Microwave auditory effect (various historical details and references) .
