Comprehensive Directed Energy Systems Study: High-Energy Lasers, High-Power Microwaves, Military Applications, Countermeasures, and Technical Analysis
A high level overview of technical research monograph examining the science, engineering, operational use, vulnerabilities, countermeasures, and system-integration challenges of high-energy laser and high-power microwave directed energy systems.
This monograph consolidates the Deep Research Team’s technical work on directed energy (DE) technologies into a single system-level assessment. The study addresses two principal DE classes: high-energy laser (HEL) systems and high-power radiofrequency / microwave (HPRF/HPM) systems. Both classes are assessed not merely as emitters, but as integrated weapon or protection architectures comprising energy generation, pulse formation or beam generation, beam control, thermal management, target acquisition, command-and-control, platform integration, and mission support subsystems.
The central conclusion is that DE technologies had, as of today, progressed from laboratory demonstrations toward selective operational relevance, but remained strongly constrained by power density, beam quality, propagation losses, duty-cycle limits, thermal loading, and targeting-chain performance. HEL systems are best understood as precision energy-delivery instruments whose effects depend on irradiance, dwell time, spot size, material absorption, thermal diffusion, and atmospheric transmission. HPRF/HPM systems are best understood as electromagnetic coupling systems whose effectiveness depends on source power, pulse width, spectral content, antenna gain, aperture geometry, target coupling paths, circuit susceptibility, and shielding effectiveness.
The study finds that HEL systems offer unique advantages for precision engagement, speed-of-light delivery, deep magazines when electrical power is available, and scalable effects ranging from dazzling and sensor damage to structural burn-through. HPM systems offer complementary strengths: area effects against electronics-rich targets, rapid engagement of multiple vulnerable subsystems, low nominal cost per shot, and particular utility against sensors, communication links, guidance electronics, and increasingly dense electronic architectures.
Directed energy effectiveness is not solely a function of source output. For HEL, the limiting variables are frequently atmospheric turbulence, scattering, absorption, jitter, beam wander, dwell stability, and target surface properties. For HPM, the limiting variables are coupling efficiency, shielding, target geometry, front-door versus back-door access paths, pulse-power packaging, and the inverse-square reduction of field strength with range. Consequently, operationally useful DE systems must be engineered as tightly coupled end-to-end architectures rather than as stand-alone emitters.
The report also concludes that miniaturisation of electronics, dependence on unshielded or lightly shielded digital subsystems, and the proliferation of unmanned and electronically mediated systems increase the military relevance of HPM. Likewise, improvements in solid-state and fibre-laser architectures, beam directors, tracking sensors, and thermal management increase the practical relevance of HEL. However, full-spectrum deployment at scale still requires major advances in compact power, ruggedisation, beam control, electromagnetic hardening, test infrastructure, and doctrine.
Finally, the study identifies counter-directed-energy measures as a co-equal research priority. Reflective and ablative coatings, obscurants, geometry management, thermal buffering, shielding, filtering, grounding, surge suppression, fibre and dielectric design, hardening of critical electronics, and battle-management adaptations can substantially alter the offense–defense balance. Directed energy therefore should be treated not as a single technology, but as an evolving contest between beam generation, coupling efficiency, platform integration, and target survivability.
Table of Contents
Study Scope and Analytical Framework
Directed Energy Fundamentals
High-Energy Laser Systems
High-Power Radiofrequency and Microwave Systems
Directed Energy System Architecture and Integration
Target Effects, Damage Mechanisms, and Vulnerability Thresholds
Operational Applications and Mission Utility
Countermeasures, Hardening, and Survivability
Safety, Human Factors, Legal, and Perception Issues
Industrial Base, Infrastructure, and Research Priorities
Appendix A. Representative HPM Source Classes
Appendix B. Pre-2012 Publicly Available Literature Summary
1. Study Scope and Analytical Framework
The present study synthesises historical, scientific, engineering, and operational analyses relating to directed energy systems. The work addresses both physical mechanisms of energy delivery and the larger system-of-systems problem associated with making directed energy operationally credible. The analysis therefore spans: source physics; amplification and pulse generation; beam transport; antenna and aperture design; atmospheric and environmental propagation; target coupling; damage thresholds; integration into land, sea, air, and fixed-site platforms; logistics; safety; and countermeasures.
The study intentionally treats lasers and HPM within a common framework. Although their physical interaction mechanisms differ - photothermal, photomechanical, and photoionisation effects in the laser case versus induced currents, dielectric breakdown, upset, latch-up, and burnout in the HPM case - both are governed by the same system logic: generate concentrated energy, transport it with acceptable losses, place it on or into the target, and maintain a sufficient effect window before the geometry or environment closes the engagement opportunity.
A recurrent theme of this report is that terminology often obscures engineering substance. High-energy laser, high-power microwave, high-power radiofrequency, narrow-band, ultra-wide-band, continuous-wave, pulsed, front-door coupling, and back-door coupling each describe only one slice of the system problem. In practice, mission utility emerges from the chain as a whole: energy source, conditioning, radiator, pointing, control, platform support, and target susceptibility.
2. Directed Energy Fundamentals
2.1 Electromagnetic spectrum context
Directed energy systems exploit controlled regions of the electromagnetic spectrum. Lasers typically operate from the visible into the infrared, with common military-interest wavelengths extending from roughly 0.4 µm through several micrometres, although longer-wavelength architectures also exist. HPRF/HPM systems generally occupy the microwave and lower millimetre-wave regime, from low megahertz through tens of gigahertz, with corresponding wavelengths ranging from metres to millimetres.
Regardless of band, the engineering objective is concentration of energy in space and time. Laser lethality is tied to irradiance at a spot and the resulting temperature rise or stress history within the target material. Microwave lethality is tied to the electric and magnetic fields induced at vulnerable coupling points, the power and energy deposited in circuits, and the susceptibility of those circuits to temporary upset or permanent damage.

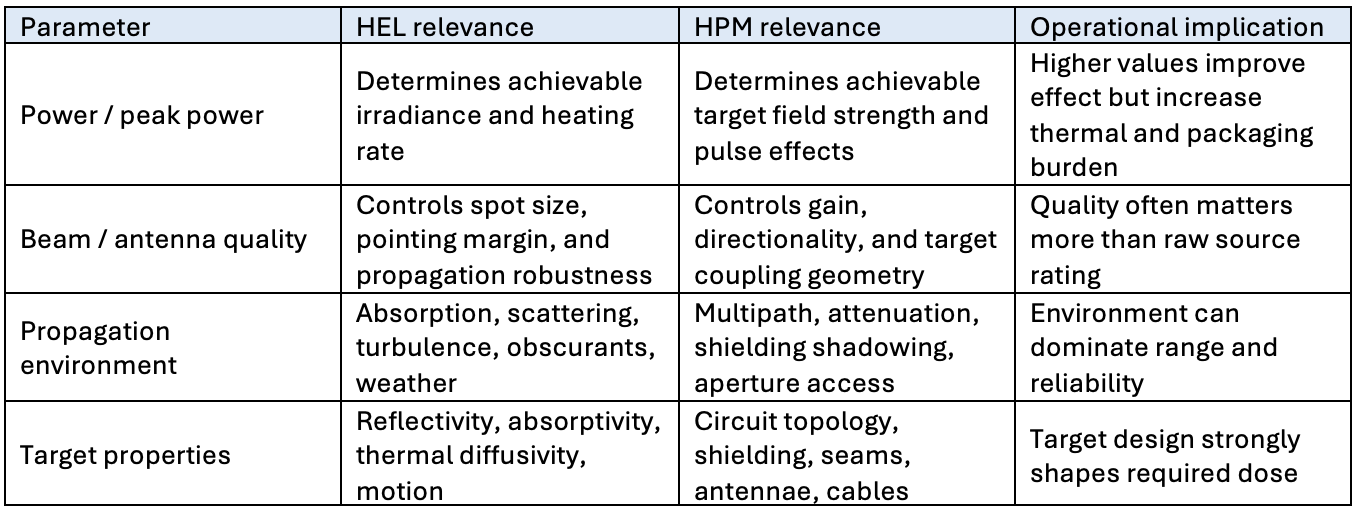

2.2 Measures of effect
For laser systems, the key observables are average power, pulse energy, pulse width, repetition rate, beam quality, spot size, irradiance, fluence, and dwell time. Small spot sizes and high beam quality are often more decisive than raw output power because the delivered intensity rises as energy is concentrated into a smaller area. Continuous-wave systems are generally favoured for thermal deposition and sustained heating; pulsed systems can add peak-power advantages for specialised coupling or shock-driven effects.
For HPM systems, the key observables are peak power, average power, frequency, bandwidth, pulse width, rise time, repetition rate, antenna gain, polarisation, and radiated field strength at the target. The operationally relevant quantity is rarely source power alone. Rather, system effect depends on the local field at the victim electronics, its duration, and the efficiency with which that field couples into circuits, interconnects, apertures, sensors, or antennas.
3. High-Energy Laser Systems
3.1 Laser classes and media
Laser architectures of relevance include gas and chemical lasers, dye lasers, crystal and glass solid-state lasers, fibre-based systems, and semiconductor diode lasers. Gas and chemical systems historically offered high output and important early military benchmarks but imposed large logistics and integration burdens. Dye lasers demonstrated broad tunability but were less attractive for rugged field deployment. Solid-state and fibre approaches offered a more promising path toward compactness, electrical efficiency, modularity, and eventual tactical integration.
Representative media include helium-neon systems for low-power precision applications, carbon-dioxide systems near 10 µm for industrial cutting, neodymium-doped crystals and glasses for high-power solid-state architectures, erbium- and ytterbium-doped fibres for compact and efficient photonic systems, and semiconductor diode lasers with emission governed by the p–n junction material system. The engineering relevance of each class lies not simply in wavelength but in conversion efficiency, thermal handling, beam quality, package mass, and maintainability.
3.2 HEL damage mechanisms
Laser interaction with targets proceeds through several physical pathways. The dominant pathway for most near-term defence applications is photothermal heating: the beam deposits energy, local temperature rises, and the target undergoes softening, melting, charring, ablation, ignition, sensor blooming, or structural failure. Under appropriate pulse conditions, photomechanical stress and plasma-mediated processes can also matter, but the practical engineering problem typically remains the same: deliver enough energy density to a sufficiently small spot for long enough that thermal diffusion and target motion do not prevent the intended effect.
Material response depends on reflectivity, absorptivity, heat capacity, thermal conductivity, layer structure, coatings, and geometry. Thin skins can fail by burn-through; optical systems can fail by detector overexposure, blooming, glazing, or thermal fracture; polymeric and composite components can char or delaminate; and metallic components can often survive longer due to high thermal conductivity unless dwell is maintained with precision.
3.3 Beam control and atmospheric propagation
A militarily relevant laser is inseparable from its beam director and tracking chain. The emitter must be coupled to steering mirrors or gimbals, inertial stabilisation, acquisition sensors, and closed-loop control. Jitter, target aspect changes, aero-optical disturbances, and finite control bandwidth directly affect delivered fluence because modest pointing errors enlarge effective spot size or move the beam off the intended aimpoint.
Propagation losses remain one of the decisive constraints. Atmospheric absorption, scattering by aerosols, turbulence-induced phase distortion, thermal blooming, obscurants, rain, fog, dust, and sea spray all degrade energy on target. These effects are wavelength-dependent and can change rapidly with weather and local environment. Consequently, HEL system design is a problem of both source physics and atmospheric engineering.
3.4 HEL subsystem decomposition
A defensible HEL architecture comprises at minimum: (1) a laser source, whether pulsed or continuous-wave; (2) a beam director that directs and focuses the beam onto a target; (3) a power subsystem that generates and conditions the required electrical energy; (4) thermal management to reject waste heat and maintain optical alignment; (5) integrating structures that couple the emitter to a ship, vehicle, aircraft, or fixed platform; and (6) a command-and-control subsystem with sensors for detection, tracking, fire control, and engagement assessment.
The practical implication is that apparent source-level advances do not translate linearly into system utility. A source that is lighter, more efficient, or brighter can be rendered operationally marginal if thermal rejection, vibration tolerance, fine tracking, or beam director contamination are not solved concurrently.
4. High-Power Radiofrequency and Microwave Systems
4.1 Definition and operating bands
High-power microwave systems are DE systems that radiate intense electromagnetic energy, commonly from approximately 1 to 300 GHz in the narrower engineering usage, though broader HPRF discussions can extend from low megahertz into high gigahertz bands. These systems act primarily on electronics, wiring, sensors, communication nodes, digital logic, and power-conditioning hardware rather than on bulk structural materials.
HPM devices may be narrow-band or ultra-wide-band. Narrow-band systems generally extract coherent radiofrequency output from intense relativistic electron beams through an interaction structure. Ultra-wide-band systems typically radiate extremely short, high-peak-power pulses through fast switching and direct antenna excitation. In system terms, narrow-band approaches trade spectral concentration for coupling selectivity and antenna efficiency, while ultra-wide-band approaches trade spectral spread for disruptive transient content.
4.2 Source physics and device families
The modern HPM field emerged from advances in pulsed-power technology, relativistic electron-beam generation, microwave tubes, and plasma physics. As pulse-power systems improved, it became possible to generate kiloampere-class, high-energy electron beams and to drive devices such as magnetrons, klystrons, virtual cathode oscillators (vircators), travelling-wave structures, cyclotron devices, and related relativistic microwave sources at power levels of military interest.
These devices differ in frequency agility, efficiency, pulse width, repetition capability, peak power, and packaging burden. Vircators and related relativistic oscillators are attractive for simplicity and high peak power but often suffer in efficiency and spectral purity. Magnetrons and klystron-derived devices can offer more controlled output. Repetitively pulsed architectures, while more complex, are generally of greater operational relevance than single-shot laboratory sources because they permit re-aim, multi-target engagement, and cumulative upset or damage.
4.3 Coupling pathways: front door and back door
HPM effectiveness is governed by how energy enters the target. Front-door coupling occurs when electromagnetic energy enters through the pathways intentionally designed to receive signals, such as antennas, sensor apertures, radomes, receiver front-ends, and communication links. Back-door coupling occurs through unintended pathways such as seams, slots, cracks, cable penetrations, power lines, poorly bonded panels, and structural discontinuities.
Front-door attacks can exploit receiver sensitivity and high-gain apertures to achieve effect at comparatively lower incident field strength. Back-door attacks are often less efficient but can be decisive when shielding is poor, wiring runs are long, or power electronics and control buses present resonant or broadband entry paths. The most vulnerable systems are usually not those with the largest apertures alone, but those whose coupling path, impedance environment, and protective components permit destructive currents or voltages to reach critical nodes.
4.4 HPM modes of action
HPM effects span a graded continuum: no observable effect; transient interference; functional disturbance; upset, in which the target ceases correct operation but may recover; and permanent damage involving component burnout, dielectric breakdown, or secondary failure cascades. Field strength and deposited energy thresholds depend strongly on victim technology, packaging, shielding, and coupling pathway. Vulnerability can range from analogue front-end overload through digital latch-up to irreversible semiconductor failure.
Operationally, this means the desired effect must be selected before system design. A system intended to suppress radar or communications temporarily can be optimised differently from one intended to destroy seeker heads, avionics, or mission computers. Short, high-peak pulses may be well suited to upset and front-end overload; repeated pulses can exploit cumulative heating or repeated logic disturbance; and high-energy single-shot devices may be preferred for one-time area denial or warhead applications.
5. Directed Energy System Architecture and Integration
Directed energy is often mischaracterised as a source-centric technology. In reality, system integration dominates. Every DE platform must solve the same set of engineering tasks: acquire sufficient energy; condition and store it; convert it into the required optical or RF form; steer or radiate it with precision; reject waste heat; protect friendly electronics and operators; and integrate all functions into a platform whose volume, mass, vibration, and environmental envelope are finite.
HEL systems are constrained heavily by thermal management and line-of-sight pointing. HPM systems are constrained heavily by pulse-power packaging, antenna/aperture integration, electromagnetic compatibility, and separation of friendly electronics from the radiated pulse. For mobile systems, platform power and cooling budgets are decisive. For airborne systems, every increment of mass, drag, and electrical load has disproportionate penalty. For naval systems, available shipboard power is an advantage but corrosion, contamination, and deck integration remain non-trivial. Fixed-site systems permit larger apertures and more robust support infrastructure but trade mobility and survivability.

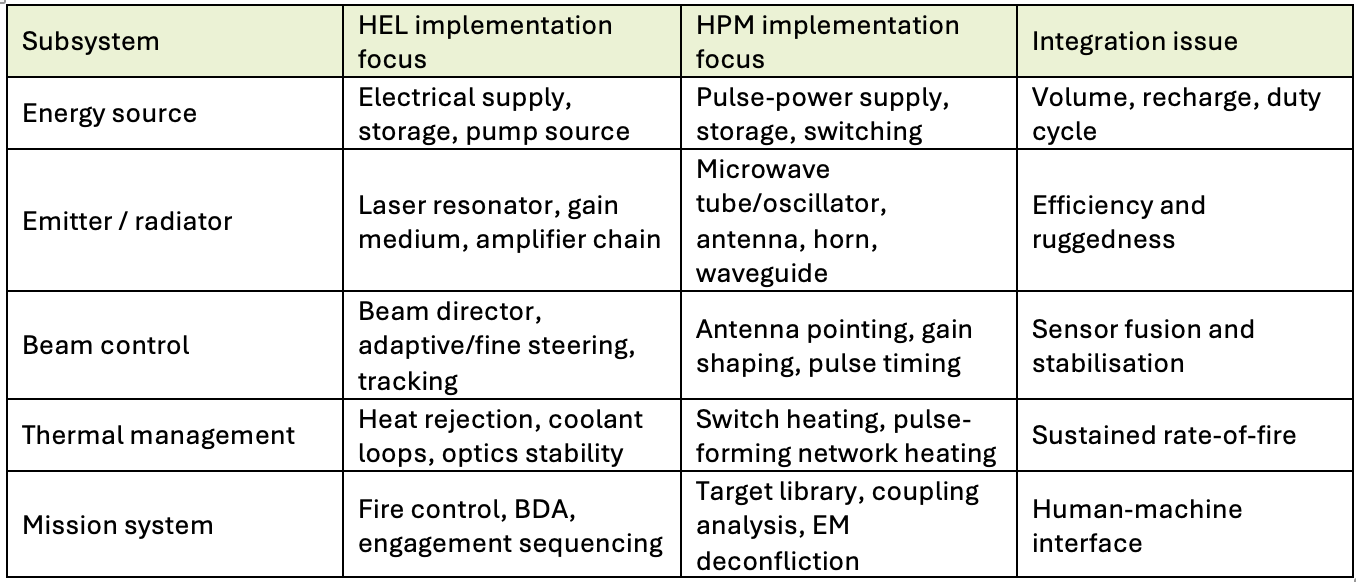

5.1 Representative subsystem architecture
6. Target Effects, Damage Mechanisms, and Vulnerability Thresholds
Laser and HPM effects are frequently discussed qualitatively, but engineering design requires threshold thinking. For HEL, the relevant thresholds are those of sensor saturation, coating failure, onset of charring or melting, adhesive degradation, structural weakening, and eventual perforation or mission kill. For HPM, the relevant thresholds are those for interference, upset, and irreversible component damage.
Electronic systems are not uniformly vulnerable. Sensors, communications subsystems, avionics, guidance packages, power-conversion stages, logic devices, and RF front ends each exhibit distinct susceptibility profiles. Operational amplifiers, gallium-arsenide field-effect devices, exposed receiver chains, and poorly protected digital buses can be particularly sensitive. A notional severity ladder useful for design includes: (1) no effect; (2) interference; (3) disturbance; (4) upset; and (5) damage. For modern electronics-rich targets, upset-level external fields on the order of single-digit kilovolts per metre can be operationally meaningful, while hard damage generally requires substantially higher local fields or favourable coupling conditions.
Range dependence is severe. For radiating HPM systems, target field strength decreases rapidly with distance absent extreme antenna gain and controlled geometry. Therefore, device-level threshold numbers should never be read independently of antenna aperture, pulse shape, polarisation, and target presentation. Similarly, HEL source ratings should never be read independently of spot size, dwell time, atmospheric state, and target motion.

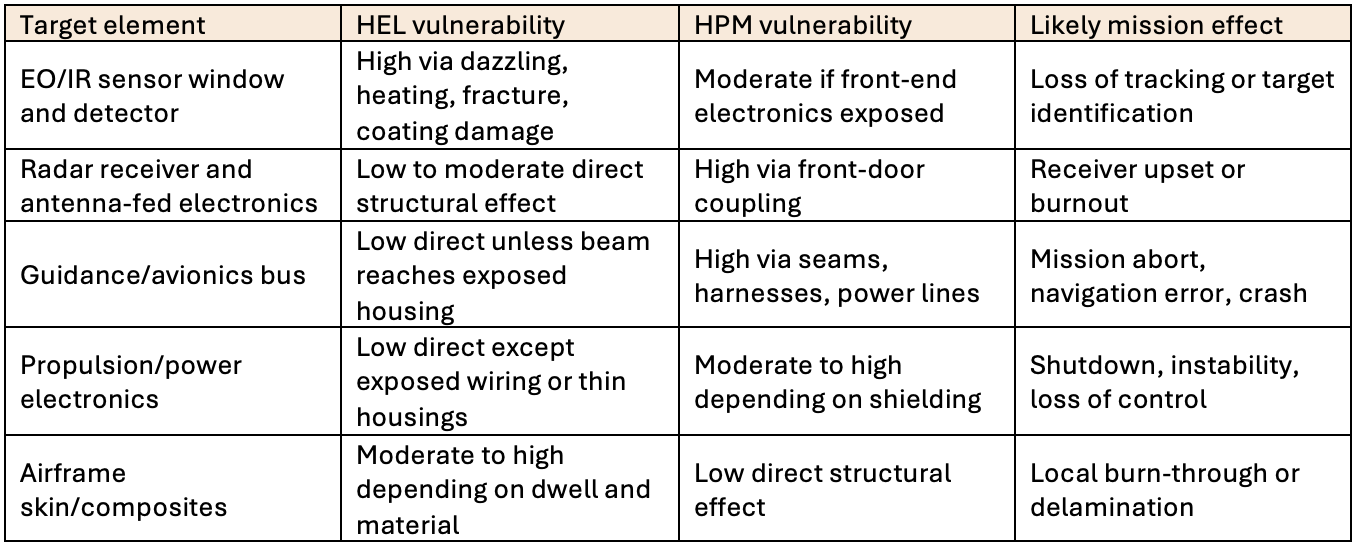

6.1 Illustrative susceptibility matrix
7. Operational Applications and Mission Utility
Directed energy technologies support a broad set of missions: air and missile defence; counter-sensor attack; suppression of electronic systems; counter-unmanned systems; defence of high-value fixed sites; ship self-protection; precision disabling of vehicles or payloads; and selective non-lethal or low-collateral electronic attack. Their appeal derives from speed-of-light engagement, low propagation time, scalable effects, reduced dependence on kinetic intercept geometries, and the possibility of deep shot inventories when electrical power is available.
HEL systems are particularly attractive when precision, low collateral damage, and visible line-of-sight are available. Candidate missions include electro-optical sensor defeat, precision structural engagement of exposed components, and close-in defence against vulnerable airborne threats. HPM systems are particularly attractive when targets are electronics-dense, when multiple subsystems may be susceptible simultaneously, or when temporary disruption is preferable to kinetic destruction.
An especially important application class is the defeat of unmanned and remotely piloted systems. Such systems are generally constrained by low mass, tight power budgets, compact avionics, exposed antennas, lightweight composite structures, and limited shielding. As autonomy and distributed sensing increase, the number of potentially vulnerable electronic nodes per platform also increases. Directed energy therefore offers a credible path to selective defeat of the mission functions - navigation, sensing, communications, or flight control - even when full structural destruction is unnecessary.
7.1 Single-shot versus repetitive-pulse concepts
HPM employment concepts divide broadly into single-shot systems and repetitively pulsed systems. Single-shot concepts, including flux-compression-driven or warhead-like devices, emphasise very high instantaneous output and may be suitable for one-time area attack or specific payload missions. Repetitively pulsed systems instead emphasise reuse, re-aim, multiple engagements, and cumulative electronic stress. The latter are generally more compatible with tactical platforms and sustained defense roles.
HEL concepts likewise divide between shorter-duration precision effects and sustained engagement concepts. For defensive missions against moving threats, the principal challenge is maintaining adequate dwell on the correct vulnerable aimpoint for a sufficient time while compensating for target motion, atmospheric disturbance, and platform vibration.
8. Countermeasures, Hardening, and Survivability
Counter-directed-energy design is a critical determinant of battlefield value. Against HEL, candidate measures include reflective or wavelength-selective coatings, ablative layers, thermal spreaders, sacrificial outer skins, geometrical shaping to frustrate dwell, rapid manoeuvre, rotation, obscurants, smoke, aerosols, and exploitation of adverse weather. No single measure is universally effective because coatings are often wavelength-specific and may fail under sustained flux or when the attacker shifts spectral band.
Against HPM, the principal measures are electromagnetic hardening and disciplined system design: conductive enclosures, filtered penetrations, cable management, bonded seams, surge suppression, grounding control, waveguide-below-cutoff techniques for apertures, shielding of critical processors and power electronics, optical isolation where feasible, and redundancy in mission-critical subsystems. Hardened design should be informed by an explicit front-door/back-door susceptibility analysis rather than by enclosure-level shielding numbers alone.
Target survivability can also be improved doctrinally. Emission control, distributed architectures, graceful degradation modes, reversionary control laws, autonomous fault recovery, and shielding-aware maintenance discipline can reduce the operational payoff of a DE attack even when some hardware is affected.
9. Safety, Human Factors, Legal, and Perception Issues
Directed energy systems create distinctive safety burdens. HEL systems present eye hazards, skin hazards, fire risk, beam-reflection hazards, and collateral risks to sensors, aircraft, and friendly optical equipment. HPM systems present risks of electromagnetic interference with friendly systems, inadvertent upset of civilian electronics, operator exposure if interlocks or exclusion zones fail, and compatibility conflicts with dense electromagnetic environments.
Safe employment therefore requires not only range safety but also exclusion-zone modelling, beam and lobe control, line-of-fire discipline, electromagnetic compatibility assessment, lockout procedures, hardened platform electronics, and engagement governance. Human factors also matter: operators must understand line-of-sight constraints, atmospheric penalties, dwell requirements, collateral reflections, and mission-appropriate effect selection.
Legal and perception issues are significant because DE effects can range from reversible disruption to permanent damage and because some applications, especially anti-personnel uses, raise acute policy concerns. The practical research implication is that safety, doctrine, and policy should be integrated early rather than appended after engineering maturity.
10. Industrial Base, Infrastructure, and Research Priorities
Directed energy capability development requires more than component research. It demands specialised test ranges, electromagnetic compatibility laboratories, atmospheric propagation test infrastructure, thermal-vacuum and vibration facilities, target vulnerability laboratories, modelling and simulation tools, and a workforce able to work across photonics, pulsed power, RF engineering, power electronics, materials science, controls, and operational analysis.
The study identifies the following research priorities as most leverage-bearing by 2012: compact and efficient electrical power sources; pulsed-power miniaturisation; high-brightness solid-state and fibre-laser scaling; rugged beam directors; adaptive beam control; frequency-agile and repetitive HPM sources; high-gain compact antennas; shielding and hardening materials; architecture-level vulnerability assessment for electronics-rich platforms; and integrated doctrine for using DE alongside kinetic and electronic warfare systems.
A mature DE enterprise also requires sovereign competence in manufacturing, integration, and test. Without such competence, a military may possess isolated components but lack the ability to qualify them under realistic environments, harden its own systems, or evolve doctrine as threats adapt.
10.1 Directed Energy and Acoustic Systems in Extraction, Recovery, Drone Defense, and Radar-Denial Operations
This section is designed to be more prospective, and ‘what-if’, in nature, as opposed to technical, with a mix of forward-looking speculative application, as well as current-day, based on findings.
Directed-energy systems are most credible in supporting roles during extraction and recovery operations rather than as stand-alone war-winning weapons. Public defense and government sources show that these capabilities fit best in missions involving graduated force, sensor defeat, short-duration area denial, electronics disruption, and self-protection, while persistent constraints remain in power generation, thermal management, beam control, atmospheric propagation, and rules-of-engagement integration. The defense establishment currently treats these technologies as part of a broader family of intermediate force capabilities that sit between mere presence and lethal effects.
10.2 Role in extraction and personnel-recovery events
In a politically sensitive extraction scenario such as a noncombatant evacuation, embassy reinforcement, consulate recovery, hostage-release perimeter control, or special-operations exfiltration in an urban littoral state, directed-energy and acoustic systems function best as tools for access shaping and escalation management. Their principal value lies not in deep strike, but in creating temporary corridors, standoff warning zones, sensor-suppression windows, and confusion effects that reduce immediate reliance on lethal force. That logic aligns with current DoD framing for non-lethal and intermediate-force capabilities, which emphasizes accurate, tailorable effects in complex and ambiguous scenarios while minimizing unintended escalation and unnecessary destruction.
A realistic concept of employment divides the extraction problem into five functions:
First, long-range hail and warn. Acoustic hailing devices are already fielded as part of the U.S. non-lethal capability inventory. Their role is straightforward: project intelligible voice commands and warning tones beyond the range and clarity of conventional loudhailers, especially in environments dominated by engine noise, rotor wash, surf, or crowd noise. This makes them useful for exclusion zones, landing-zone control, maritime boarding support, convoy control points, and urban evacuation corridors.
Second, optical and directed-energy deterrence. The current U.S. intermediate-force portfolio explicitly includes optical distracters and directed-energy systems, which are designed to create compelling but controlled effects short of lethal fires. In an extraction setting, these systems fit the intermediate space between verbal warning and kinetic engagement by helping repel personnel, interrupt approach behavior, and establish visible escalation steps.
Third, sensor suppression. One of the most operationally valuable uses of directed energy is not direct attack on personnel, but the degradation of an opponent’s ability to observe, target, and coordinate. Low-power or mission-tailored laser systems can disrupt electro-optical sensors, observation devices, and some targeting aids, creating short blindness or degradation windows around embarkation points, rooftops, chokepoints, or maritime approaches. That is consistent with the broader military logic of directed energy, which continues to emphasize precision effects and defensive utility against sensors and electronics.
Fourth, electronics disruption at the edge of the battlespace. High-power microwave concepts remain especially relevant where the objective is to upset radios, command links, exposed electronics, remote triggers, surveillance packages, or lightly protected control systems. Air University analysis describes RF and high-power microwave weapons as systems intended to disrupt or destroy electronics, which makes them most plausible against electronics-rich targets rather than against hardened structures as such. In an extraction context, that translates into temporary degradation of hostile coordination and sensing rather than any fantasy of broad, indiscriminate shutdown.
Fifth, close-in defense of platforms and landing zones. Directed-energy and acoustic systems are naturally compatible with perimeter defense because those missions benefit from fixed geometry, prepared surveillance, known engagement sectors, and layered escalation logic. Current DoD intermediate-force doctrine explicitly places these systems in the space between presence and lethal force, which makes them highly suitable for protecting compounds, gates, embarkation points, and temporary recovery sites.
The implication for a specific contingency (such as an infiltration mission) is that directed energy serves most plausibly as a supporting envelope around a conventional extraction package. Helicopters, tilt-rotors, surface craft, and convoy elements still depend on intelligence, deception, suppression of armed threats, communications security, and rapid movement. Directed energy improves the odds by helping keep crowds off the landing zone, discouraging vehicle approach, degrading visual surveillance, complicating hostile coordination, and providing visible escalation steps before lethal engagement becomes necessary.
10.3 Directed energy for drone operations
The drone problem has two distinct sides: using directed energy on drones and using directed energy against drones. Both are real, but both remain bounded by engineering and engagement constraints.
For airborne integration, high-power microwave concepts remain attractive because they can produce effects on electronics without demanding the same dwell precision and material coupling required for structural laser kill. That makes them conceptually suitable for selective disruption missions, including suppression of exposed electronic systems and self-protection roles. At the same time, payload mass, pulse-power storage, thermal rejection, antenna aperture, electromagnetic compatibility, and platform integration remain major constraints. These factors are especially severe for small and medium unmanned systems.
For counter-drone roles, directed energy is most persuasive when the target drone is small, lightly hardened, and dependent on exposed electro-optical payloads, GPS reception, data links, or commercial-grade electronics. A laser does not need to burn through the airframe to be militarily useful; sensor blinding, tracker disruption, or payload degradation may be enough to abort reconnaissance or targeting. Likewise, a microwave system does not require catastrophic kill if it can induce navigation loss, control upset, payload failure, or mission abort. The limiting factors remain identification, precise tracking, short dwell windows, weather, line-of-sight geometry, and the very small vulnerable area presented by many targets.
The grounded conclusion is that directed energy offers a credible component of drone defense and selective drone disablement, but it works best in a layered architecture with radar, electro-optics, electronic warfare, and conventional interceptors rather than as a universal substitute for them.
10.4 Radar, surveillance, and air-defense related use cases
Directed energy intersects radar and air defense in three distinct ways.
The first is sensor defeat. Lasers can degrade, saturate, or confuse optical trackers, imaging systems, and certain seekers. This is often more attainable than full platform kill because the energy required to damage or confuse a sensor is much lower than the energy required for catastrophic structural destruction. That asymmetry is what makes directed energy attractive for aircraft self-protection, convoy defense, maritime escort, and site security.
The second is microwave attack on electronics and radar-adjacent systems. High-power microwave effects depend on coupling pathways. Systems with antennas, cable runs, apertures, inadequate shielding, or sensitive front-end electronics are more exposed than hardened systems. In practical terms, the most realistic outcomes are degraded communications, intermittent faults, logic upset, receiver desensitization, or peripheral-system failure, not guaranteed destruction of every radar in view. That makes HPM attractive for selective disruption of local air-defense nodes, command posts, remote sensor clusters, and mobile surveillance assets.
The third is missile defense and protective systems research. Directed-energy concepts continue to attract military interest because they offer speed-of-light engagement, low cost per shot in principle, and the possibility of deep magazines where power is available. But raw beam lethality is only one variable; operational utility still depends on survivability, geometry, tracking, atmospheric conditions, thermal load, and cost-effective deployment.
10.5 Sonic and acoustic systems beyond crowd control
Sonic and acoustic systems are often overstated in popular discussion, but their realistic utility is narrower and still operationally important. Their strongest uses are communication dominance, warning, maritime exclusion enforcement, checkpoint management, psychological pressure, and disruption of hostile approach patterns. The current DoD intermediate-force portfolio explicitly includes acoustic hailing devices as fielded capabilities, which underscores that the military treats them as practical tools rather than exotic superweapons.
In extraction operations, an acoustic system offers several grounded advantages. It transmits commands across rotor wash, crowd noise, engine noise, and urban clutter; it provides an immediately recognizable escalation signal; and it supports lawful warning and behavioral shaping before force escalates further. It works best when paired with spotlights, interpreters, surveillance, maneuver barriers, and overwatch. Its weaknesses are equally clear: performance falls in cluttered terrain, intelligibility drops in reverberant spaces, and determined or protected adversaries can ignore it. Acoustic systems therefore function best as behavior-shaping tools, not reliable incapacitation systems.
10.6 Other grounded use cases
A realistic survey of additional use cases includes several domains.
Maritime security and small-boat defense remains one of the most credible applications. Acoustic hailing devices, optical distracters, and other intermediate-force tools fit naturally into exclusion-zone enforcement, warning, standoff management, and pre-kinetic deterrence around ships, ports, and offshore facilities.
Base and perimeter defense also remains highly suitable. Checkpoints, gates, flight lines, ammunition areas, and expeditionary compounds provide known geometry, integrated surveillance, available power, and layered doctrine, all of which favor directed-energy and acoustic employment.
Aircraft self-protection continues to be one of the most analytically persuasive roles for directed energy, especially in sensor-centric and defensive applications. The logic here is not that every aircraft becomes a beam-armed strike platform, but that speed-of-light engagement and tailored effects can enhance defense against seekers, sensors, and certain electronics-dependent threats.
Special operations support is another strong fit. Directed-energy and acoustic systems support short-duration perimeter control, access denial, sensor suppression, and mission-tailored escalation in politically constrained environments where minimizing collateral damage matters as much as neutralizing interference. Current DoD guidance on intermediate-force capabilities is explicitly oriented toward those ambiguous scenarios.
Counter-materiel effects against electronics-rich targets remain particularly promising for HPM. Surveillance towers, communications relays, remote sensors, vehicle subsystems, and improvised trigger chains are often more vulnerable than armored platforms because their combat value resides primarily in electronics rather than mass. Effectiveness, however, still depends heavily on coupling, hardening, pulse design, range, aspect, and shielding.
10.7 Constraints and cautions
Grounded analysis still requires acknowledging the core limits of the technology: power supply, pulse-power packaging, thermal rejection, beam control, tracking stability, weather, aerosols, line-of-sight masking, uncertain effects against shielded electronics, and the continuing requirement for layered integration with conventional forces. Even authoritative defense sources that stress the promise of directed energy also frame it as one component of a broader operational architecture rather than a stand-alone solution.
The central conclusion is that directed energy and acoustic systems are neither science fiction nor universal answers. Their real military value lies in graduated coercion, localized denial, sensor defeat, and selective electronic disruption. In extraction scenarios, they expand tactical options and can reduce collateral risk when embedded in a disciplined combined-arms package. For drones, radar-related missions, maritime security, and special operations support, they offer meaningful but bounded advantages. The correct analytical posture is neither dismissal nor hype: directed energy is best understood as a specialized force multiplier whose success depends more on system integration and mission design than on raw power alone.
Overall Assessment
As of 2012, directed energy should be regarded neither as a speculative curiosity nor as a universal replacement for kinetic weapons. It is a family of rapidly maturing technologies whose practical value depends on disciplined system engineering and realistic mission selection. HEL is most promising where precision, low collateral effects, and sustained line-of-sight can be achieved. HPM is most promising where electronics vulnerability can be exploited at tactically meaningful range and where area or subsystem-level effects are preferred to structural destruction. The most robust strategic conclusion is that offense and defense will co-evolve. Improvements in emitters, antennas, power systems, and controls will be answered by coatings, shielding, redundancy, and doctrinal adaptation. The side that integrates physics, engineering, vulnerability intelligence, and operational concepts fastest will gain the greater advantage.

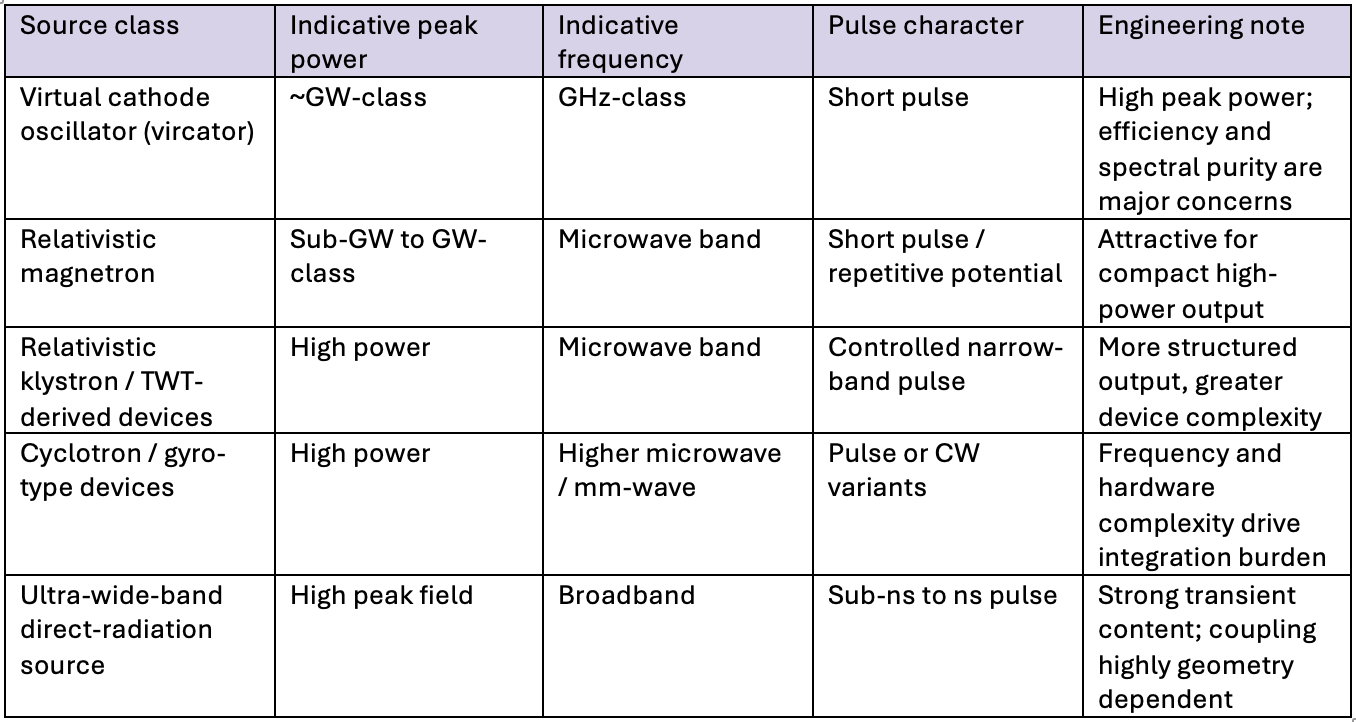

Appendix A. Representative HPM Source Classes
The table below consolidates representative device classes discussed in the research base. Values are indicative and should be interpreted as order-of-magnitude engineering markers rather than acquisition-grade specifications.
Appendix B. Pre-2012 Publicly Available Literature Summary
The following public literature predating 2012 informed the Deep Research Team’s assessment and is summarised here for orientation only. All analysis in the main body of this report reflects the Team’s own synthesis.
US Department of Defense, Developing Science and Technologies List, Section 11: Lasers and Optics Technology (2000). Provides a concise taxonomy of laser types, wavelengths, and enabling technologies, useful for understanding the diversity of gas, dye, solid-state, and semiconductor laser media.
Air University / USAF work on High Power Microwaves and strategic-operational implications (2000). Frames HPM as both a technical and doctrinal issue, emphasising coupling paths, mission utility, and implications for modern electronics-dependent forces.
Jordan et al., 'Microwave Breakdown in Slots,' IEEE Transactions on Plasma Science (2004). Improves understanding of slot and aperture phenomena relevant to back-door coupling, shielding weakness, and local field enhancement.
Weise et al., 'Overview of Directed Energy Weapon Developments,' Electromagnetic Launch Technology Symposium (2004/2005). Offers a concise overview of contemporary DE development trajectories and the balance between laboratory performance and deployable architectures.
Ni, Lu, and Gao, APMC proceedings on high-power microwave weapons (2005). Summarises the state of HPM source development, recurrent device classes, and the distinction between single-shot and repetitive-pulse concepts.
Distributed sensing and photonic device literature, including work on fibre Bragg gratings and photonic sensing (2010). Relevant for understanding broader photonic industrial competence, filters, reflectors, and enabling optical infrastructure applicable to DE subsystems.
